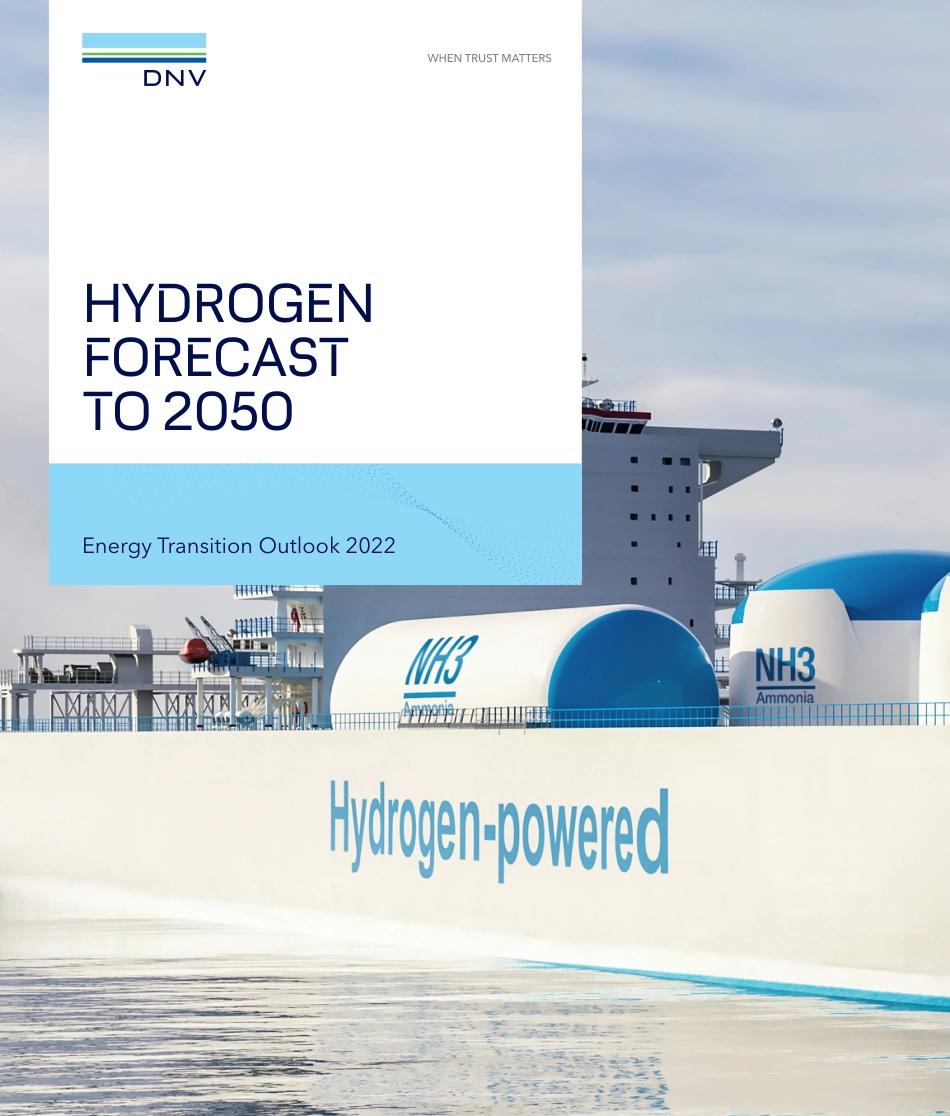

HYDROGEN

FORECAST

TO 2050

Energy Transition Outlook 2022

DNV — Hydrogen forecast to 2050

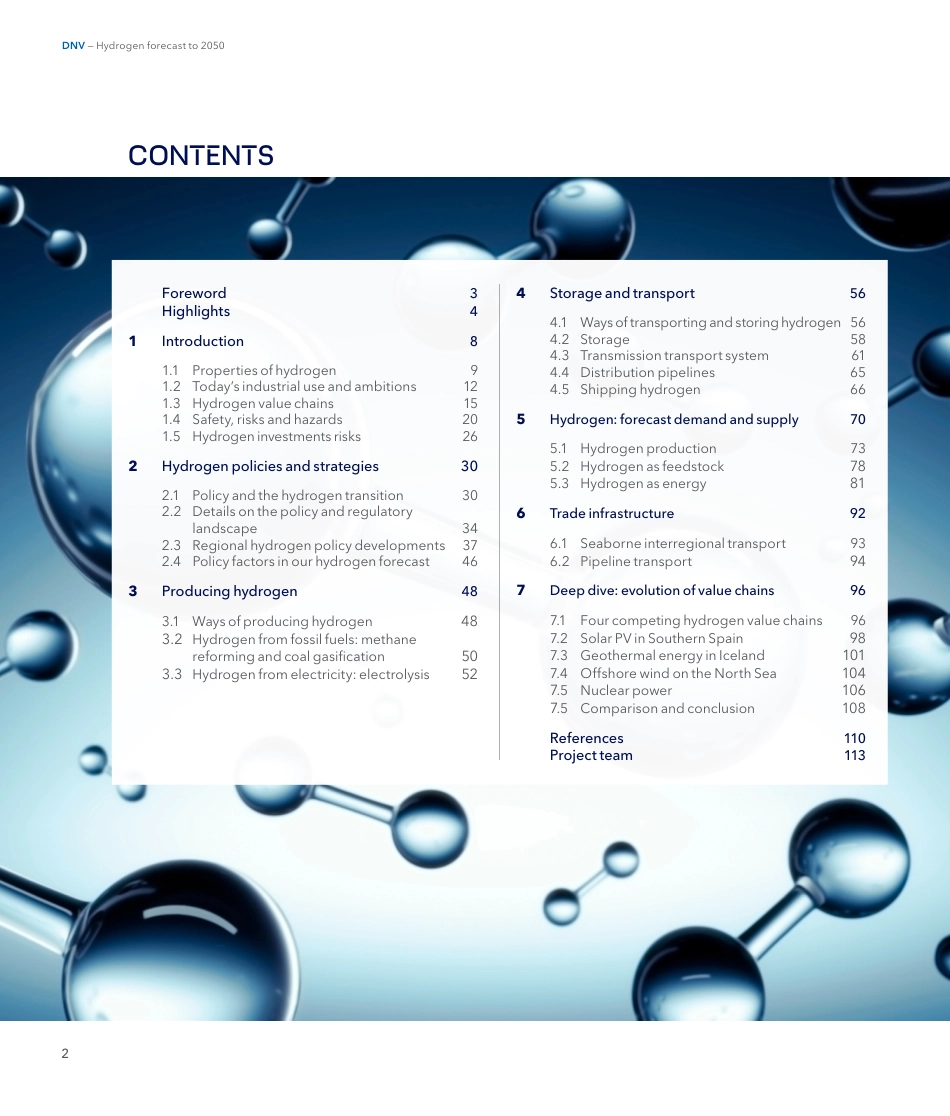

CONTENTS

Foreword 3

Highlights 4

1 Introduction 8

1.1 Properties of hydrogen 9

1.2 Today’s industrial use and ambitions 12

1.3 Hydrogen value chains 15

1.4 Safety, risks and hazards 20

1.5 Hydrogen investments risks 26

2 Hydrogen policies and strategies 30

2.1 Policy and the hydrogen transition 30

2.2 Details on the policy and regulatory

landscape 34

2.3 Regional hydrogen policy developments 37

2.4 Policy factors in our hydrogen forecast 46

3 Producing hydrogen 48

3.1 Ways of producing hydrogen 48

3.2 Hydrogen from fossil fuels: methane

reforming and coal gasiﬁcation 50

3.3 Hydrogen from electricity: electrolysis 52

4 Storage and transport 56

4.1 Ways of transporting and storing hydrogen 56

4.2 Storage 58

4.3 Transmission transport system 61

4.4 Distribution pipelines 65

4.5 Shipping hydrogen 66

5 Hydrogen: forecast demand and supply 70

5.1 Hydrogen production 73

5.2 Hydrogen as feedstock 78

5.3 Hydrogen as energy 81

6 Trade infrastructure 92

6.1 Seaborne interregional transport 93

6.2 Pipeline transport 94

7 Deep dive: evolution of value chains 96

7.1 Four competing hydrogen value chains 96

7.2 Solar PV in Southern Spain 98

7.3 Geothermal energy in Iceland 101

7.4 Offshore wind on the North Sea 104

7.5 Nuclear power 106

7.5 Comparison and conclusion 108

References 110

Project team 113

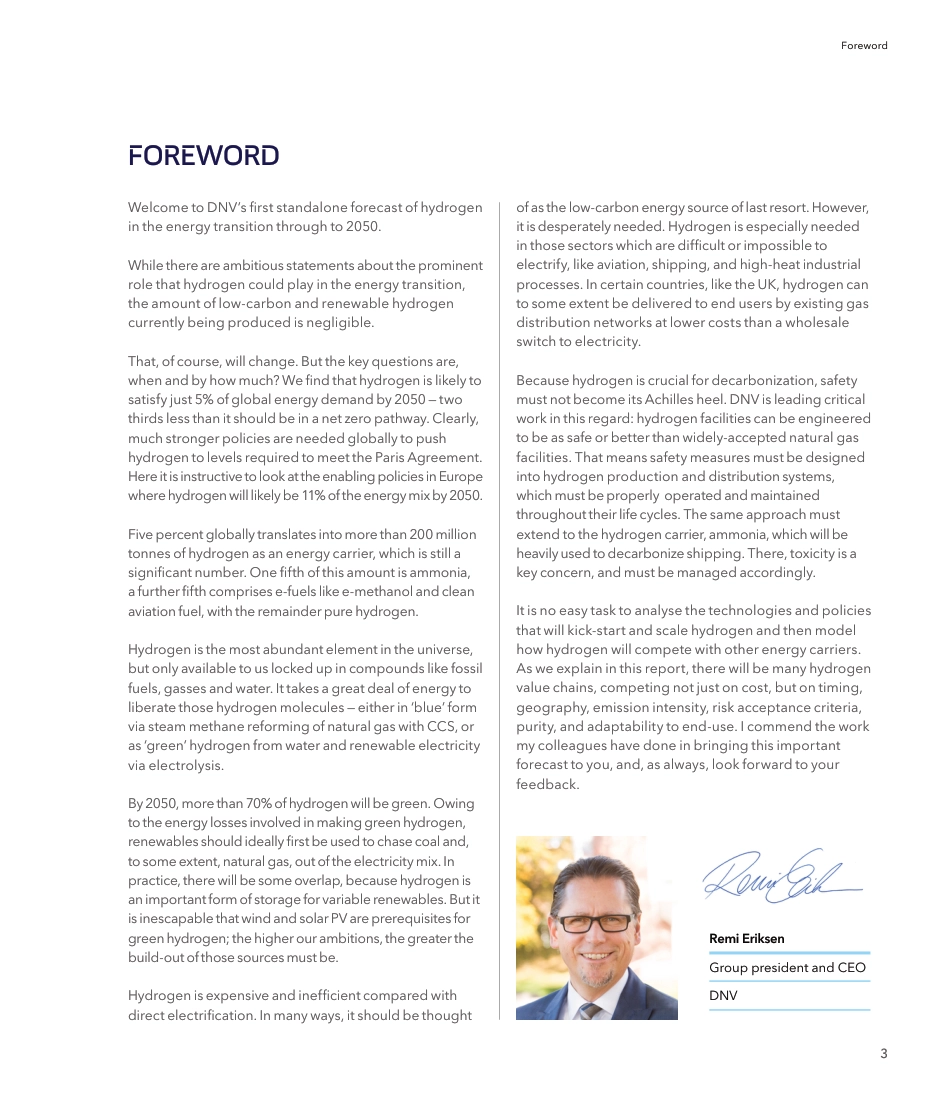

Foreword

FOREWORD

Remi Eriksen

Group president and CEO

DNV

Welcome to DNV’s ﬁrst standalone forecast of hydrogen

in the energy transition through to 2050.

While there are ambitious statements about the prominent

role that hydrogen could play in the energy transition,

the amount of low-carbon and renewable hydrogen

currently being produced is negligible.

That, of course, will change. But the key questions are,

when and by how much? We ﬁnd that hydrogen is likely to

satisfy just 5% of global energy demand by 2050 — two

thirds less than it should be in a net zero pathway. Clearly,

much stronger policies are needed globally to push

hydrogen to levels required to meet the Paris Agreement.

Here it is instructive to look at the enabling policies in Europe

where hydrogen will likely be 11% of the energy mix by 2050.

Five percent globally translates into more than 200 million

tonnes of hydrogen as an energy carrier, which is still a

signiﬁcant number. One ﬁfth of this amount is ammonia,

a further ﬁfth comprises e-fuels like e-methanol and clean

aviation fuel, with the remainder pure hydrogen.

Hydrogen is the most abundant element in the universe,

but only available to us locked up in compounds like fossil

fuels, gasses and water. It takes a great deal of energy to

liberate those hydrogen molecules — either in ‘blue’ form

via steam methane reforming of natural gas with CCS, or

as ‘green’ hydrogen from water and renewable electricity

via electrolysis.

By 2050, more than 70% of hydrogen will be green. Owing

to the energy losses involved in making green hydrogen,

renewables should ideally ﬁrst be used to chase coal and,

to some extent, natural gas, out of the electricity mix. In

practice, there will be some overlap, because hydrogen is

an important form of storage for variable renewables. But it

is inescapable that wind and solar PV are prerequisites for

green hydrogen; the higher our ambitions, the greater the

build-out of those sources must be.

Hydrogen is expensive and inefﬁcient compared with

direct electriﬁcation. In many ways, it should be thought

of as the low-carbon energy source of last resort. However,

it is desperately needed. Hydrogen is especially needed

in those sectors which are difﬁcult or impossible to

electrify, like aviation, shipping, and high-heat industrial

processes. In certain countries, like the UK, hydrogen can

to some extent be delivered to end users by existing gas

distribution networks at lower costs than a wholesale

switch to electricity.

Because hydrogen is crucial for decarbonization, safety

must not become its Achilles heel. DNV is leading critical

work in this regard: hydrogen facilities can be engineered

to be as safe or better than widely-accepted natural gas

facilities. That means safety measures must be designed

into hydrogen production and distribution systems,

which must be properly operated and maintained

throughout their life cycles. The same approach must

extend to the hydrogen carrier, ammonia, which will be

heavily used to decarbonize shipping. There, toxicity is a

key concern, and must be managed accordingly.

It is no easy task to analyse the technologies and policies

that will kick-start and scale hydrogen and then model

how hydrogen will compete with other energy carriers.

As we explain in this report, there will be many hydrogen

value chains, competing not just on cost, but on timing,

geography, emission intensity, risk acceptance criteria,

purity, and adaptability to end-use. I commend the work

my colleagues have done in bringing this important

forecast to you, and, as always, look forward to your

feedback.
