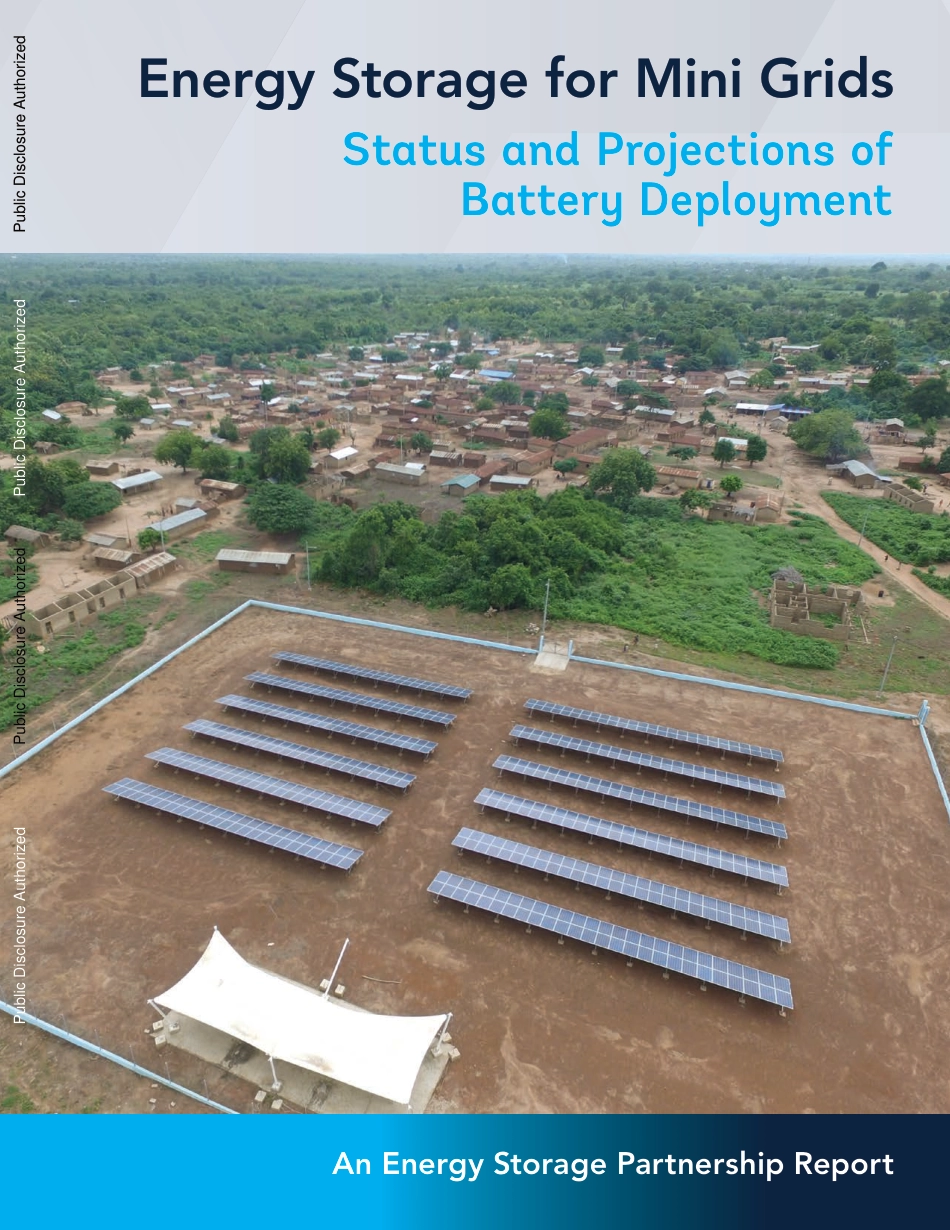

Energy Storage for Mini Grids
Status and Projections of
Battery Deployment
An Energy Storage Partnership Report
Public Disclosure AuthorizedPublic Disclosure AuthorizedPublic Disclosure AuthorizedPublic Disclosure Authorized
Energy Storage for Mini Grids
Status and Projections of Battery Deployment
This report of the Energy Storage Partnership is prepared by the Energy
Sector Management Assistance Program (ESMAP) with contributions from
the Alliance for Rural Electrification (ARE), Ricerea sul Sistema Energetico (RSE),
Loughborough University, and the Inter-American Development Bank (IADB).
The Energy Storage Partnership is a global partnership convened by the
World Bank Group through ESMAP Energy Storage Program to foster
international cooperation to develop sustainable energy storage
solutions for developing countries. For more information visit:
https://www.esmap.org/the_energy_storage_partnership_esp
/60
